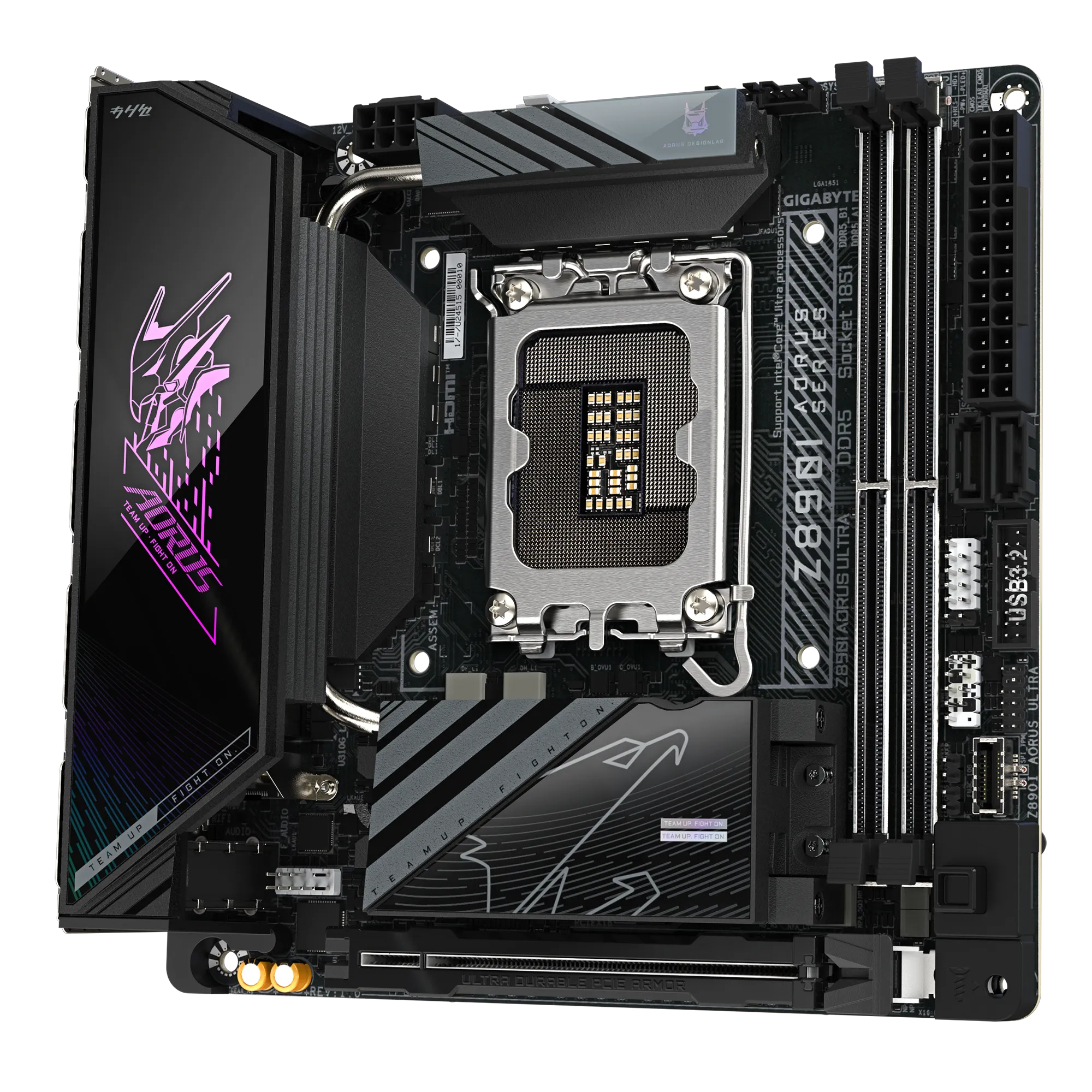

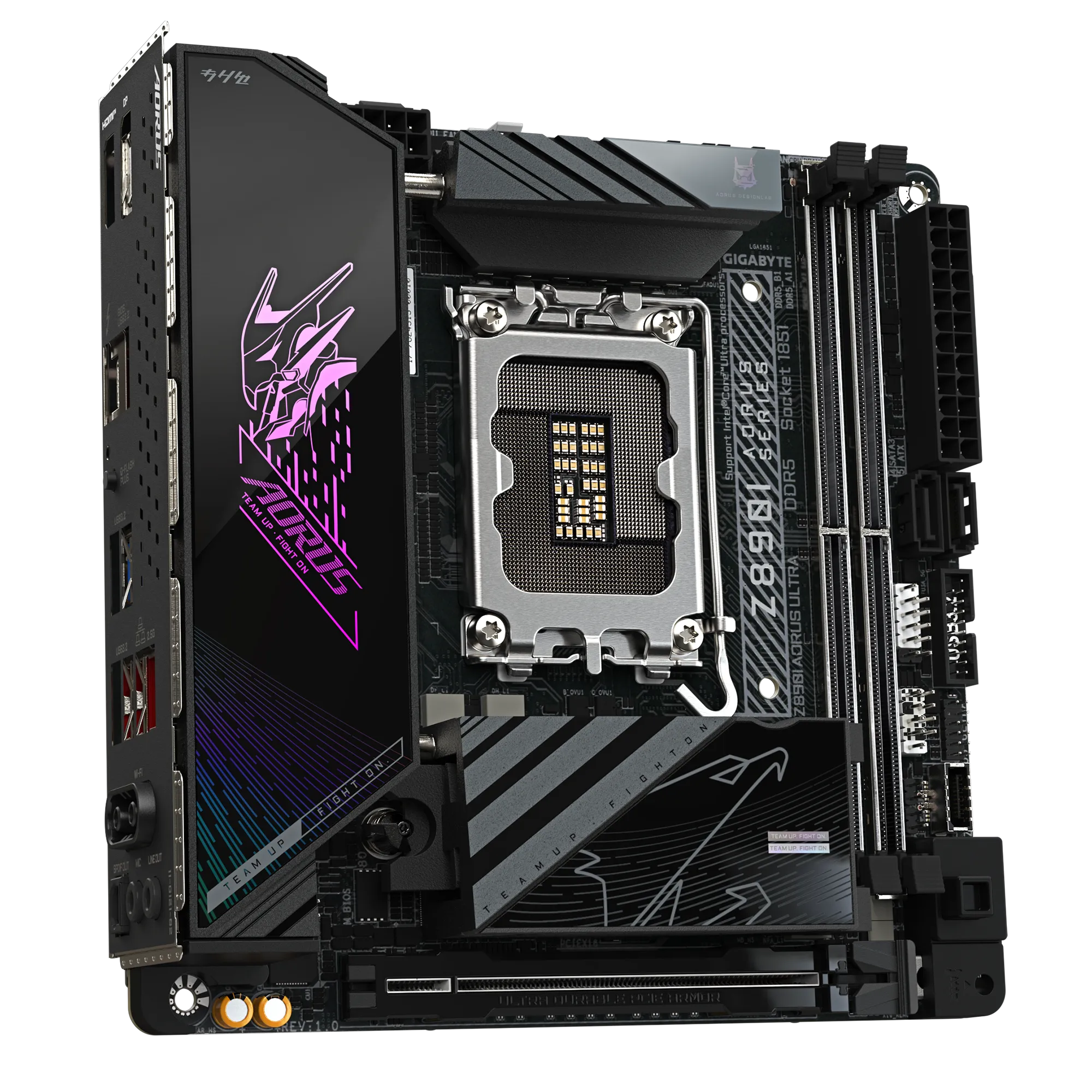

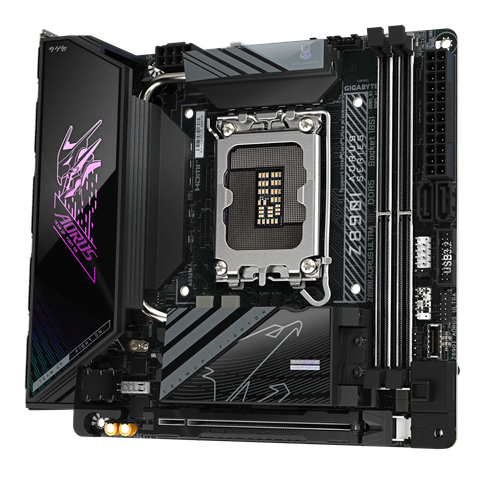

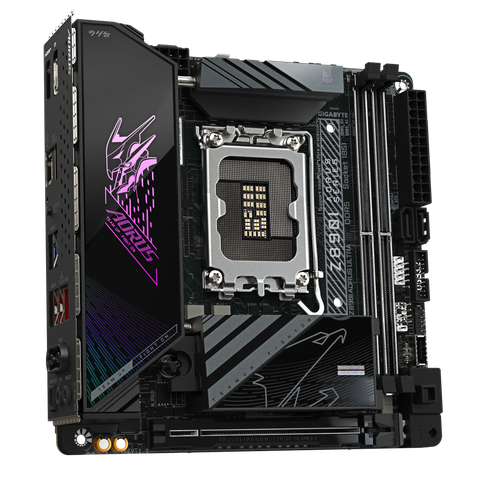

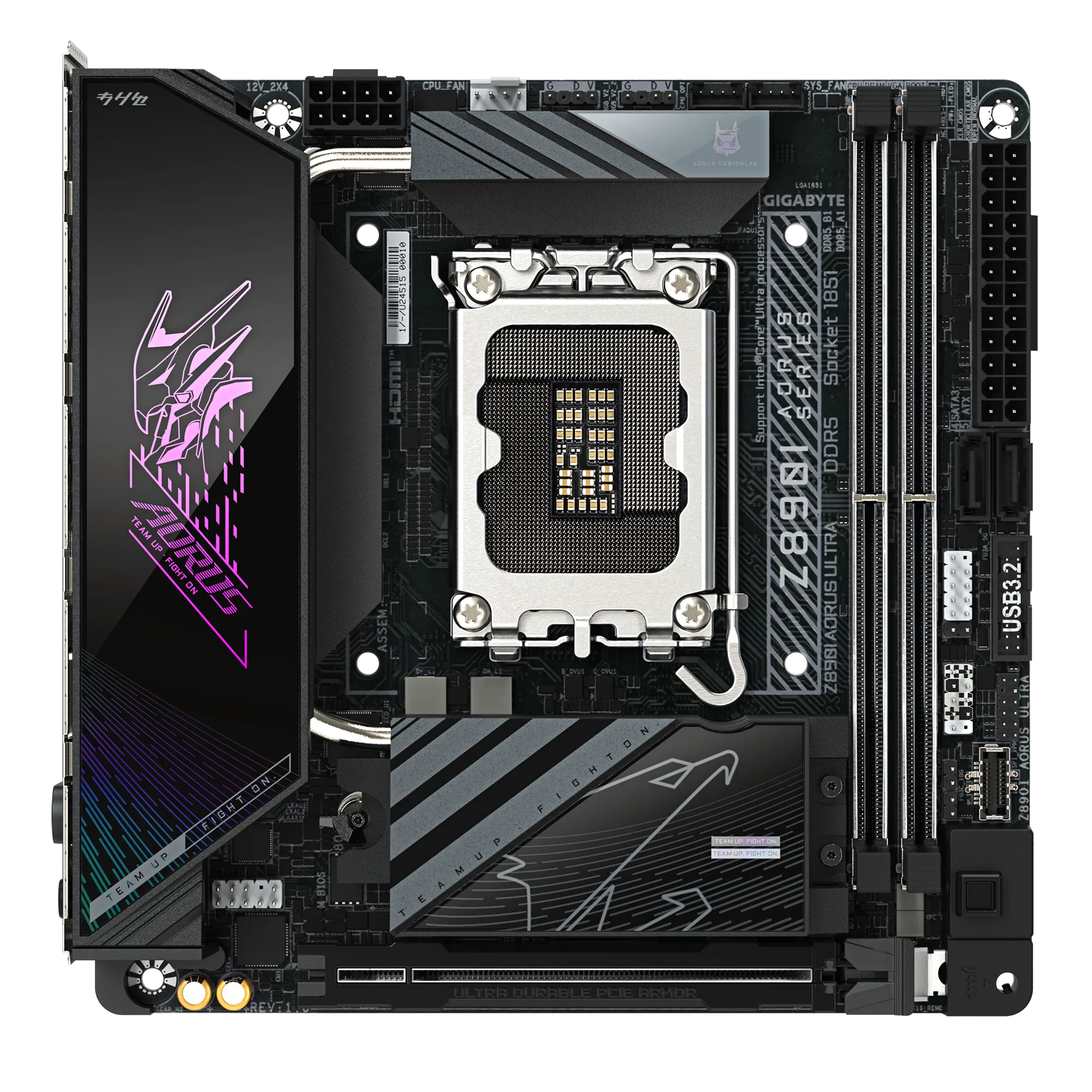

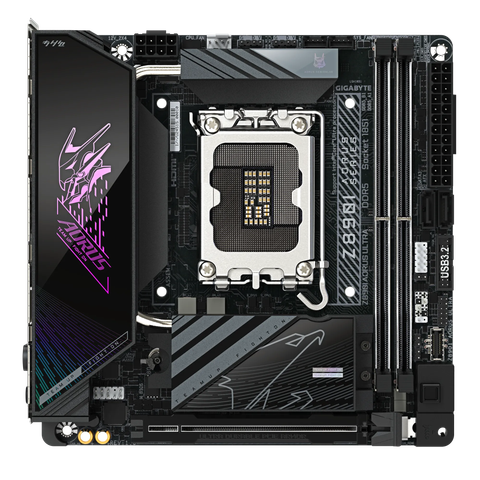

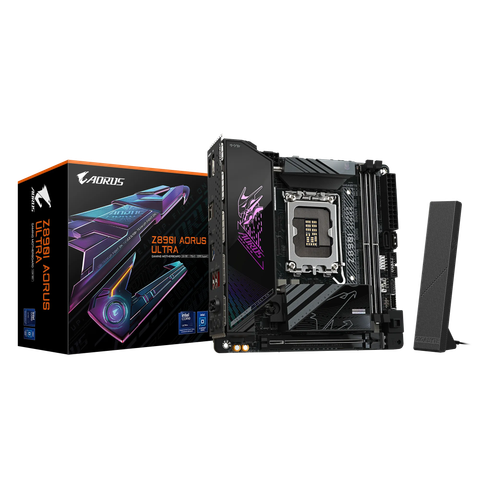

Mainboard Gigabyte Z890I AORUS ULTRA (Chipset Z890)

Mainboard Gigabyte Z890I AORUS ULTRA (Chipset Z890)

Tình trạng: Còn hàng

Mã sản phẩm: Z890I AORUS ULTRA

Thương hiệu: GIGABYTE

Dòng sản phẩm: Mainboard

~~11,000,000₫~~ 10,000,000₫ Tiết kiệm 9%

TƯƠNG THÍCH CPU

Intel Core Ultra Processors

BẢO HÀNH

Bảo hành phần cứng 36 tháng theo qui định nhà sản xuất. Đổi mới trong 7 ngày đầu nếu sản phẩm bị lỗi phần cứng.

Thông số kỹ thuật

Chia sẻ trên Facebook
Chia sẻ trên Google
Thêm vào so sánh
Thêm vào yêu thích

Bảo hành : 36 tháng bảo hành chính hãng theo tem sản phẩm
(Đổi mới trong vòng 7 ngày nếu sản phẩm bị lỗi phần cứng)

Thích hợp cho: Văn phòng, học tập, Gaming, Đồ họa
CPU hỗ trợ: Intel Core Ultra Processors
Ram hỗ trợ: 2 KHE DDR5 UP TO MAX 128GB
Lưu trữ: 2 x M.2, 2 x SATA 6Gb/s
Cổng xuất hình: 1 x Intel® Thunderbolt™ 4 connector, 1 x DisplayPort, 1 x HDMI port
Cổng kết nối có dây: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Kết nối không dây: Wi-Fi 7 BE202 + BLUETOOTH 5.4

Xem thêm

Hãng sản xuất	GIGABYTE
Xuất xứ	CHÍNH HÃNG
Dòng sản phẩm	Z890I AORUS ULTRA
Chipset	Z890
Socket	LGA1851
Kích thước	Mini-ITX Form Factor; 17.0cm x 17.0cm
Cpu hỗ trợ	Intel Core Ultra Processors
Khe ram hỗ trợ	2 KHE DDR5 UP TO MAX 128GB 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Lưu trữ	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 2 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0 and RAID 1 support for SATA storage devices
Cổng xuất hình	Integrated Graphics Processor-Intel® HD Graphics support: - 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output). When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output). * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6,"Back Panel Connectors," for more information.) * Support for DisplayPort 2.1 version and HDCP 2.3 - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 2.1 version and HDCP 2.3 - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Khe PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Cổng USB	CPU: - 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel Support up to 40Gbps with Thunderbolt devices Support up to 20Gbps with USB4 devices *Support up to 10Gbps with USB 3.2 devices Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 2.0/1.1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Lan	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

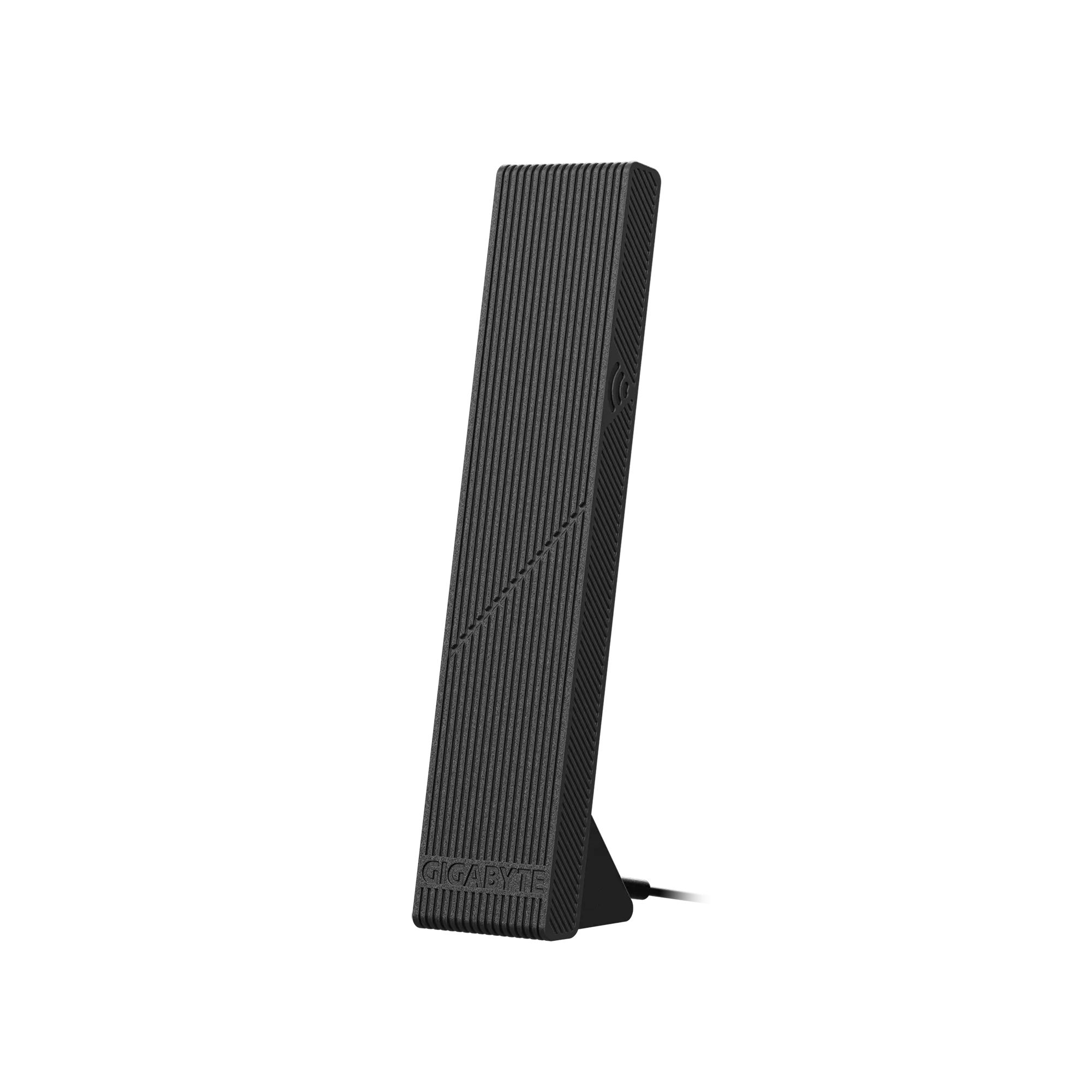

Kết nối không dây	Intel® Wi-Fi 7 BE202 (BE200NGW M) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Âm thanh	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Kết nối I/O bên trong	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 2 x addressable RGB Gen2 LED strip headers 2 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper

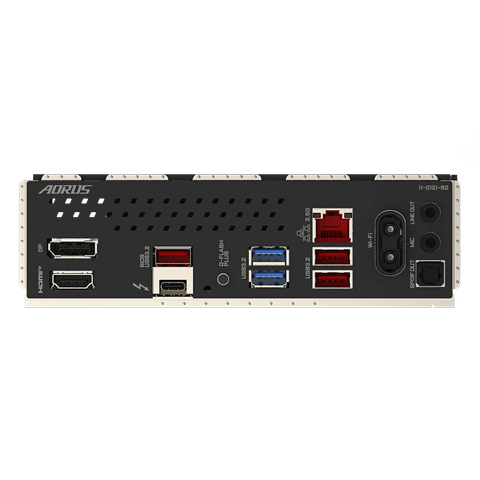

Kết nối bảng phía sau	1 x DisplayPort (Note) 1 x HDMI port (Note) 1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports) 3 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector (Note) Actual support may vary by CPU.
