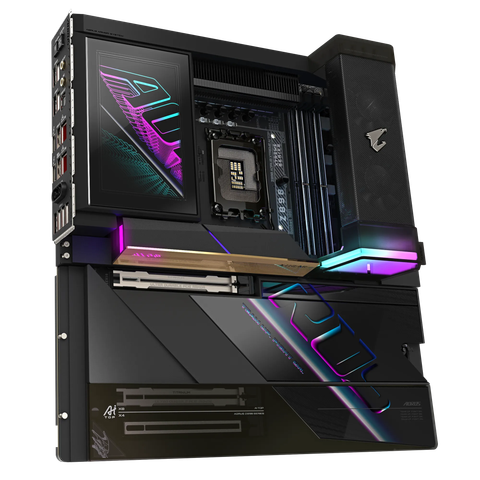

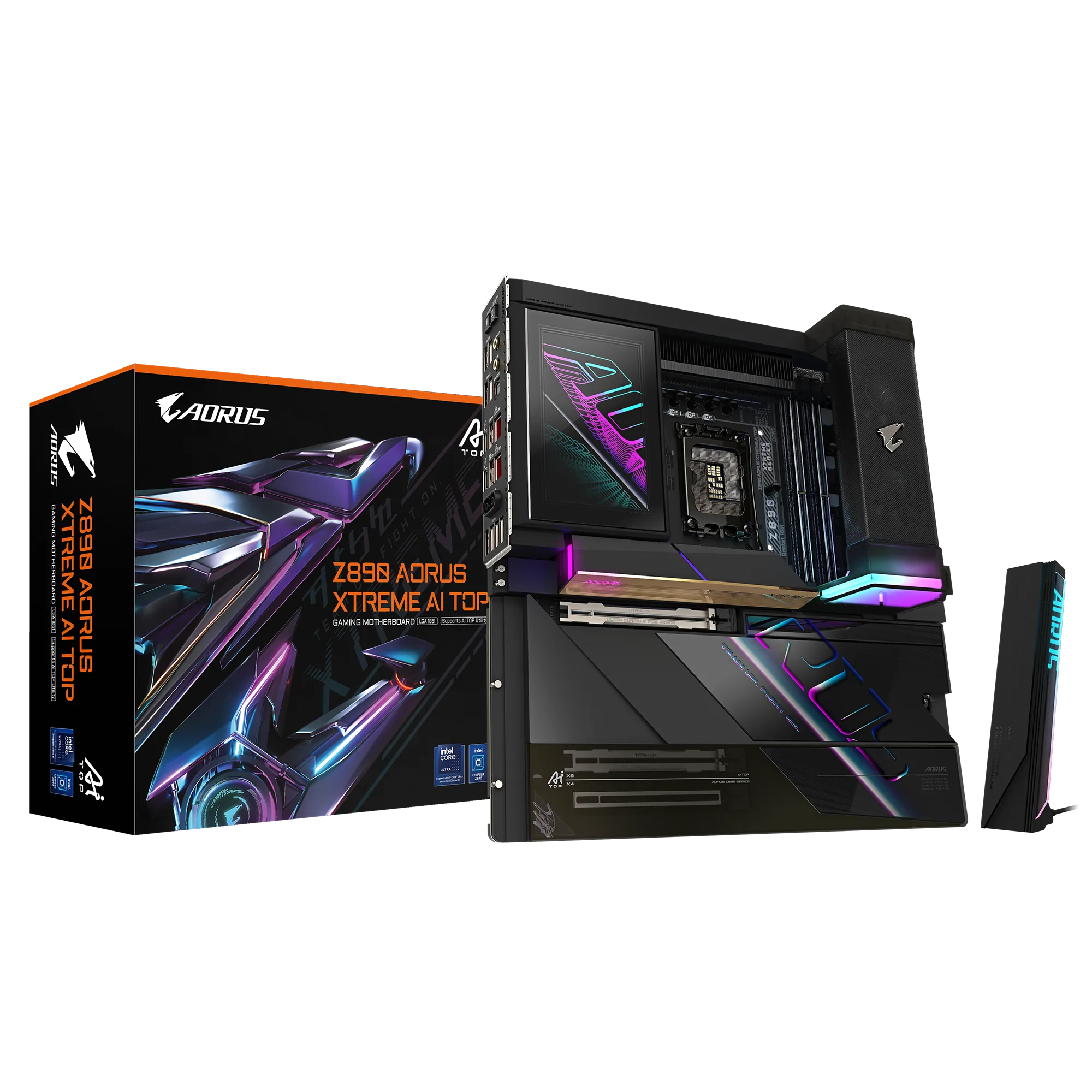

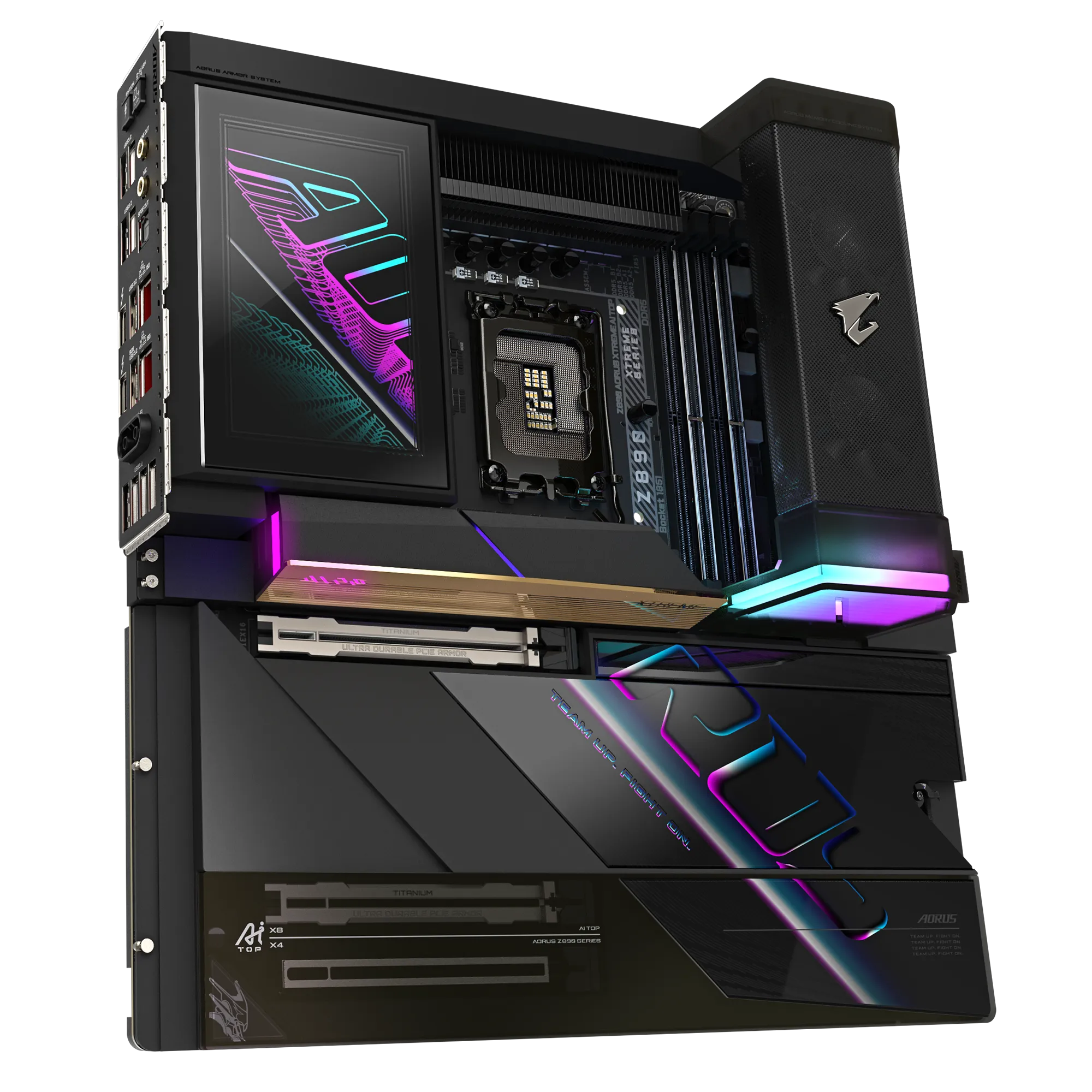

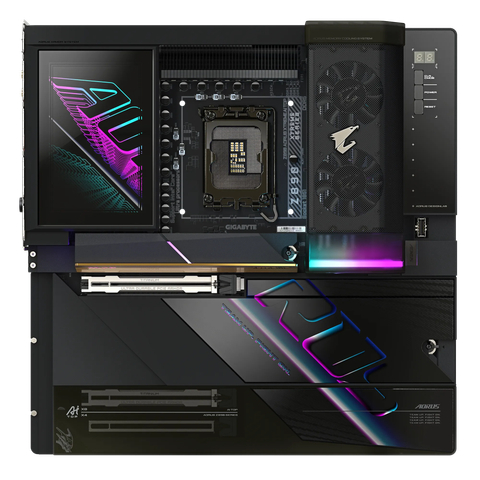

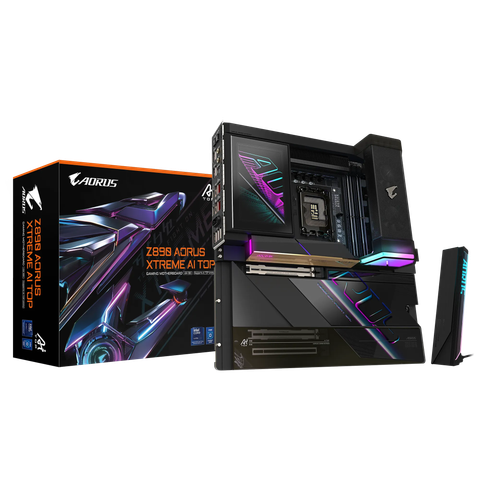

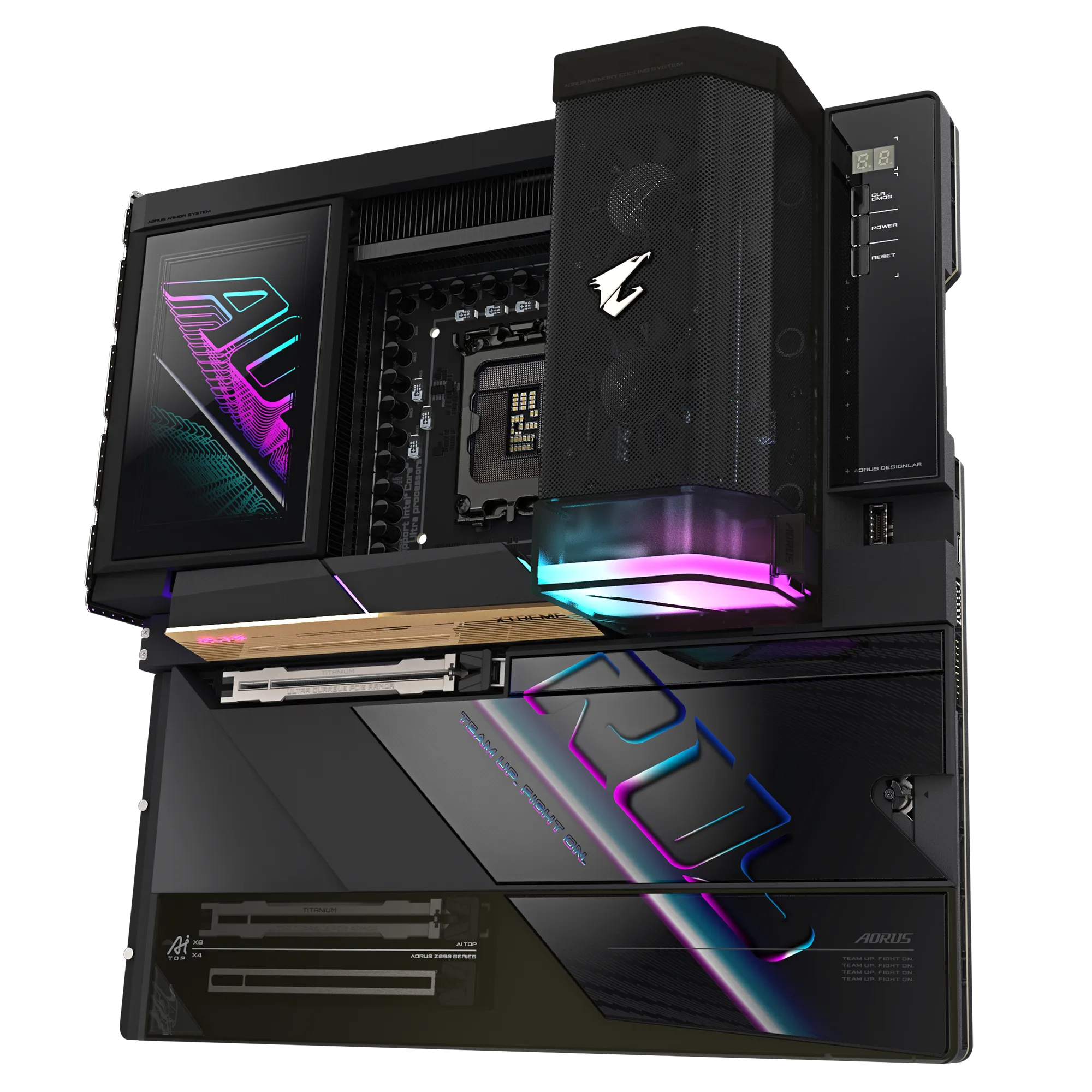

Mainboard Gigabyte Z890 AORUS XTREME AI TOP (Chipset Z890)

Mainboard Gigabyte Z890 AORUS XTREME AI TOP (Chipset Z890)

Tình trạng: Còn hàng

Mã sản phẩm: Z890 AORUS XTREME AI TOP

Thương hiệu: GIGABYTE

Dòng sản phẩm: Mainboard

~~36,999,000₫~~ 34,700,000₫ Tiết kiệm 6%

TƯƠNG THÍCH CPU

Intel Core Ultra Processors

BẢO HÀNH

Bảo hành phần cứng 36 tháng theo qui định nhà sản xuất. Đổi mới trong 7 ngày đầu nếu sản phẩm bị lỗi phần cứng.

Thông số kỹ thuật

Chia sẻ trên Facebook
Chia sẻ trên Google
Thêm vào so sánh
Thêm vào yêu thích

Bảo hành : 36 tháng bảo hành chính hãng theo tem sản phẩm
(Đổi mới trong vòng 7 ngày nếu sản phẩm bị lỗi phần cứng)

Thích hợp cho: Văn phòng, học tập, Gaming, Đồ họa
CPU hỗ trợ: Intel Core Ultra Processors
Ram hỗ trợ: 4 KHE DDR5 UP TO MAX 256GB
Lưu trữ: 4 x M.2, 4 x SATA 6Gb/s
Cổng xuất hình: 2 x Intel Thunderbolt 4 connectors, 1 x front HDMI port
Cổng kết nối có dây: 2 x Marvell AQtion AQC113C 10GbE LAN chips (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/ 100 Mbps)
Kết nối không dây: Wi-Fi 7 BE200NGW + BLUETOOTH 5.4

Xem thêm

Hãng sản xuất	GIGABYTE
Xuất xứ	CHÍNH HÃNG
Dòng sản phẩm	Z890 AORUS XTREME AI TOP
Chipset	Z890
Socket	LGA1851
Kích thước	E-ATX Form Factor; 30.48cm x 30.5cm
Cpu hỗ trợ	Intel Core Ultra Processors
Khe ram hỗ trợ	4 KHE DDR5 UP TO MAX 256GB 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Lưu trữ	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2L_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Cổng xuất hình	Integrated Graphics Processor+Intel Thunderbolt 5 Controller: - 2 x Intel Thunderbolt 5 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 7680x4320@60 Hz (single display output) * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.) * Support for DisplayPort 2.1 version and HDCP 2.3 Integrated Graphics Processor-Intel HD Graphics support: - 1 x Front Intel Thunderbolt 4 connector (USB4 USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs When a Thunderbolt monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output). When a USB4® USB Type-C monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output). * Support for DisplayPort 2.1 version and HDCP 2.3 (Please use a processor with integrated graphics support to ensure full Thunderbolt™ functionality. Graphics specifications may vary depending on CPU support.)
Khe PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. * The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with M2L_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2L_SB connector.
Cổng USB	Chipset+Intel® Thunderbolt™ 5 Controller: - 2 x Intel® Thunderbolt™ 5 (USB Type-C®) ports on the back panel Support up to 80Gbps with Thunderbolt devices Support up to 40Gbps with USB4 devices *Support up to 20Gbps with USB 3.2 devices CPU: - 1 x USB4® USB Type-C® port onboard - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+1 USB 3.2 Gen 2 Hub: - 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+1 USB 3.2 Gen 1 Hub: - 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+1 USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Lan	2 x Marvell® AQtion AQC113C 10GbE LAN chips (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/ 100 Mbps)

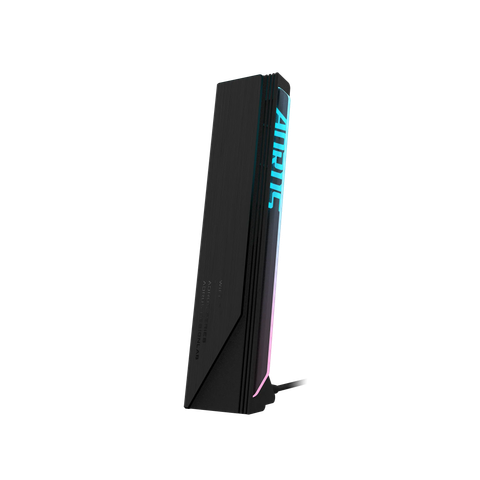

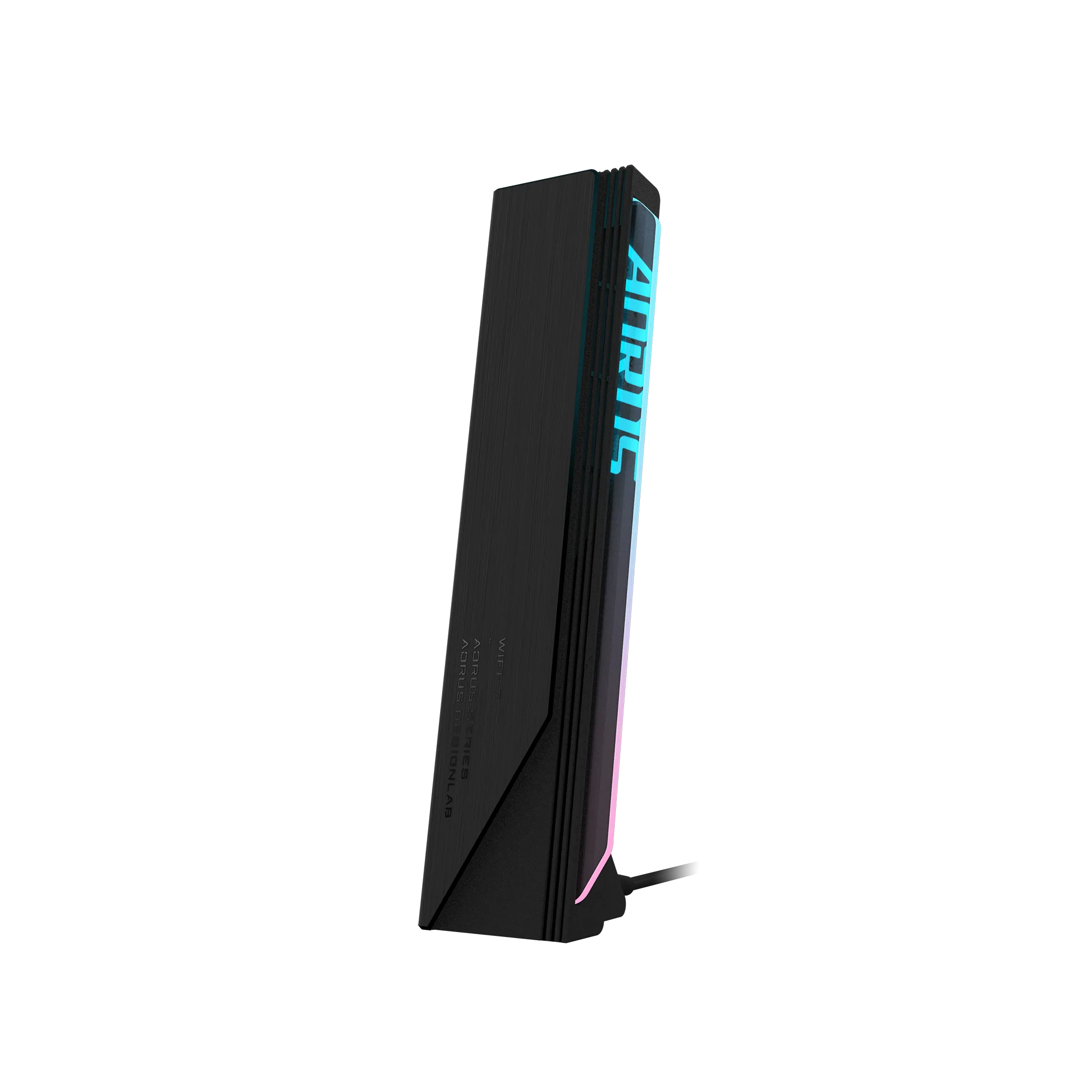

Kết nối không dây	Intel® Wi-Fi 7 BE200NGW - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations
Âm thanh	1 ESS ES9280AC DAC chip+2 ESS ES9080 chips DTS® Sound Unbound™ High Definition Audio 2-channel Support for S/PDIF Out * The line out jack and the optical S/PDIF out connector can only be used one at a time.
Kết nối I/O bên trong	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan extension cable header (can extend three system fan headers through one cable) 1 x system fan/water cooling pump extension cable header (can extend three system fan/water cooling pump headers through one cable) 1 x noise detection header 1 x integrated extension cable header for addressable RGB Gen2 LED strips and RGB LED strips (can extend four addressable RGB Gen2 LED strip headers and one RGB LED strip header through one cable) 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x Thunderbolt™ 4 (Note) connector (USB4® USB Type-C® port) 2 x USB Type-C® headers, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 1 x integrated extension cable header for system fan/water cooling pump and USB 2.0/1.1 headers (can extend one system fan/water cooling pump header and two USB 2.0/1.1 headers through one cable) 1 x power button 1 x reset button 1 x Clear CMOS button 2 x temperature sensor headers (Note) Actual support may vary by CPU.

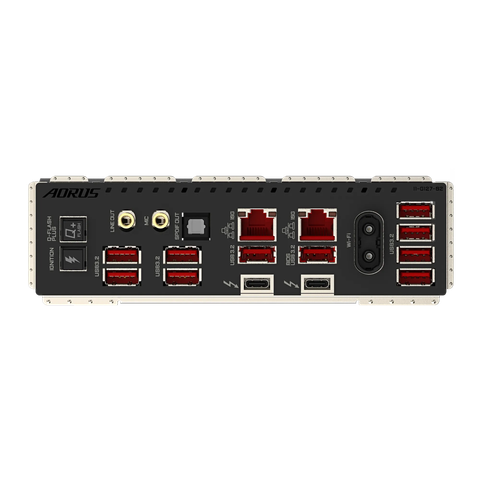

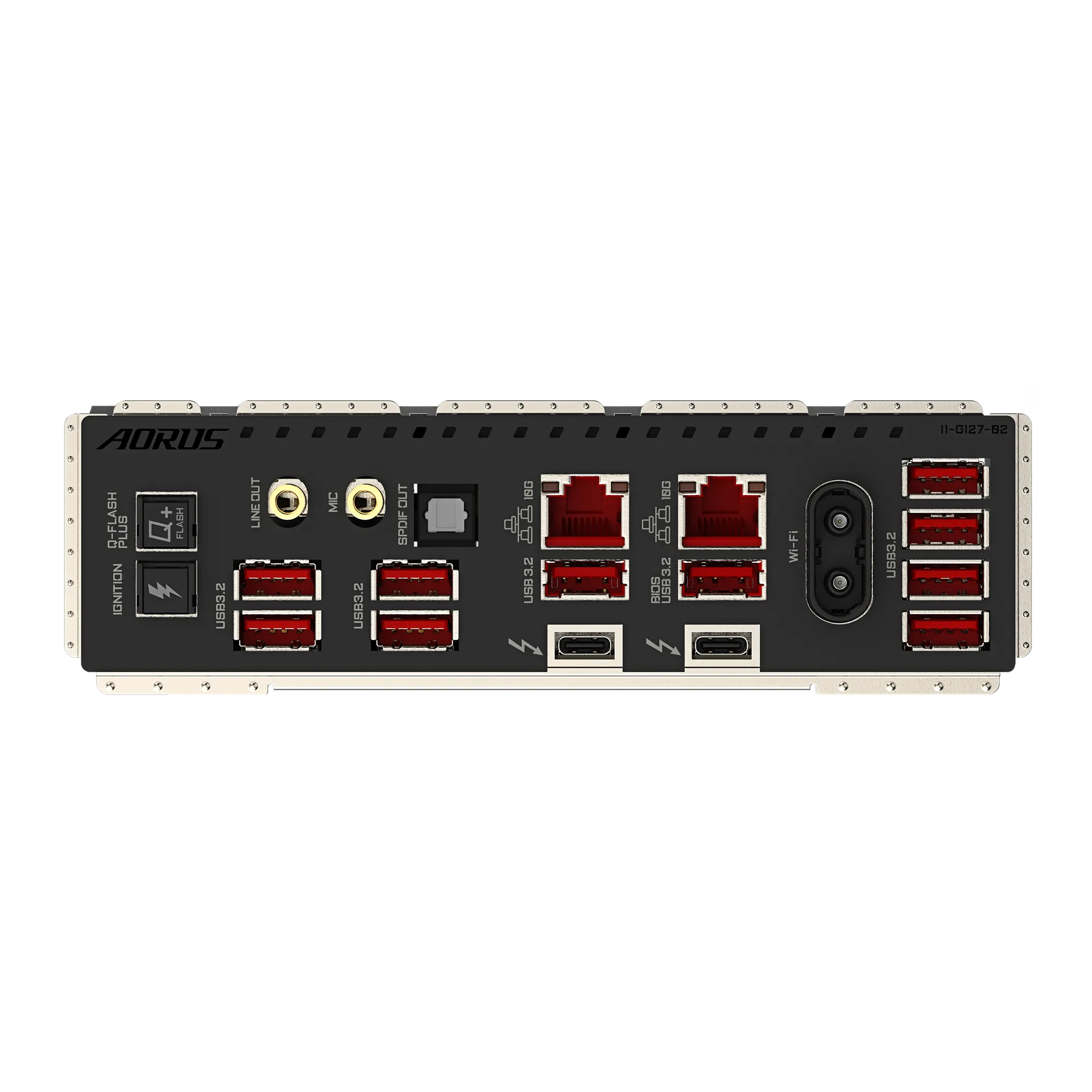

Kết nối bảng phía sau	1 x Q-Flash Plus button 1 x OC Ignition button 2 x Intel® Thunderbolt™ 5(Note) connectors (USB Type-C® ports) 10 x USB 3.2 Gen 2 Type-A ports (red) 2 x RJ-45 ports 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector (Note) Please use a processor with integrated graphics support to ensure full Thunderbolt™ functionality.
