Mainboard Gigabyte Z890 AORUS ELITE WIFI7 ICE (Chipset Z890)

Mainboard Gigabyte Z890 AORUS ELITE WIFI7 ICE (Chipset Z890)

Tình trạng: Còn hàng

Mã sản phẩm: Z890 A ELITE WIFI7 ICE

Thương hiệu: GIGABYTE

Dòng sản phẩm: Mainboard

~~10,500,000₫~~ 8,950,000₫ Tiết kiệm 15%

TƯƠNG THÍCH CPU

Intel Core Ultra Processors

BẢO HÀNH

Bảo hành phần cứng 36 tháng theo qui định nhà sản xuất. Đổi mới trong 7 ngày đầu nếu sản phẩm bị lỗi phần cứng.

Thông số kỹ thuật

Chia sẻ trên Facebook
Chia sẻ trên Google
Thêm vào so sánh
Thêm vào yêu thích

Bảo hành : 36 tháng bảo hành chính hãng theo tem sản phẩm
(Đổi mới trong vòng 7 ngày nếu sản phẩm bị lỗi phần cứng)

Thích hợp cho: Văn phòng, học tập, Gaming, Đồ họa
CPU hỗ trợ: Intel Core Ultra Processors
Ram hỗ trợ: 4 KHE DDR5 UP TO MAX 256GB
Lưu trữ: 4x M.2, 4 x SATA 6Gb/s
Cổng xuất hình: 1 x Intel Thunderbolt 4 connector, 1 x front HDMI port, 1 x DisplayPort
Cổng kết nối có dây: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Kết nối không dây: Wi-Fi 7 MT7925 + BLUETOOTH 5.4

Xem thêm

Hãng sản xuất	GIGABYTE
Xuất xứ	CHÍNH HÃNG
Dòng sản phẩm	Z890 AORUS ELITE WIFI7 ICE
Chipset	Z890
Socket	LGA1851
Kích thước	ATX Form Factor; 30.5cm x 24.4cm
Cpu hỗ trợ	Intel Core Ultra Processors
Khe ram hỗ trợ	4 KHE DDR5 UP TO MAX 256GB 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Lưu trữ	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Cổng xuất hình	Integrated Graphics Processor-Intel HD Graphics support: - 1 x Intel Thunderbolt 4 connector (USB4 USB Type-C port), supporting DisplayPort and Thunderbolt™ video outputs When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output). When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output). * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.) * Support for DisplayPort 2.1 version and HDCP 2.3 - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 2.1 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Khe PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
Cổng USB	CPU: - 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel Support up to 40Gbps with Thunderbolt devices Support up to 20Gbps with USB4 devices *Support up to 10Gbps with USB 3.2 devices Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Lan	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Kết nối không dây	MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Âm thanh	Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Kết nối I/O bên trong	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper (Note) Actual support may vary by CPU.

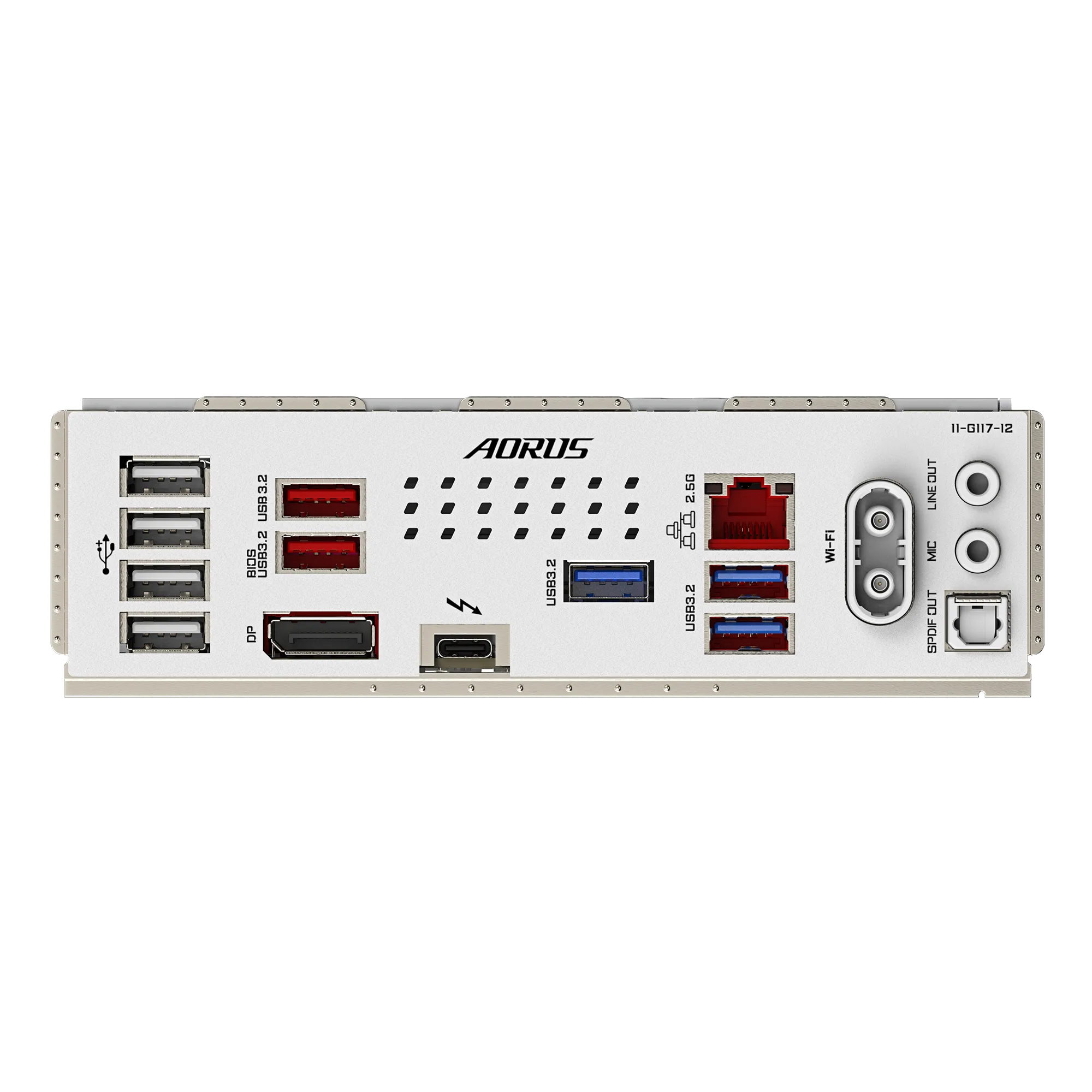

Kết nối bảng phía sau	1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x DisplayPort (Note) 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks (Note) Actual support may vary by CPU.
