Mainboard Gigabyte B450M DS3H V3 (Chipset Z890)

1. 1 x M.2 connector (Socket 3, M key, type 22110/2280/2260/2242 SATA and PCIe* 3.0 x4/x2 SSD support)
   * Actual support may vary by CPU.
2. 4 x SATA 6Gb/s connectors
3. Support for RAID 0, RAID 1, and RAID 10

Integrated Graphics Processor:

1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz^(Note)
   * Support for HDMI 2.1 version and HDCP 2.2.^(Note)

Maximum shared memory of 16 GB

(Note) Actual support may vary by CPU.

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)^(Note)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
   (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2. 1 x PCI Express x16 slot, running at x1 (PCIEX1_2)
3. 1 x PCI Express x1 slot
   (The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.)

1. Realtek^® Audio codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
4. Support for S/PDIF Out

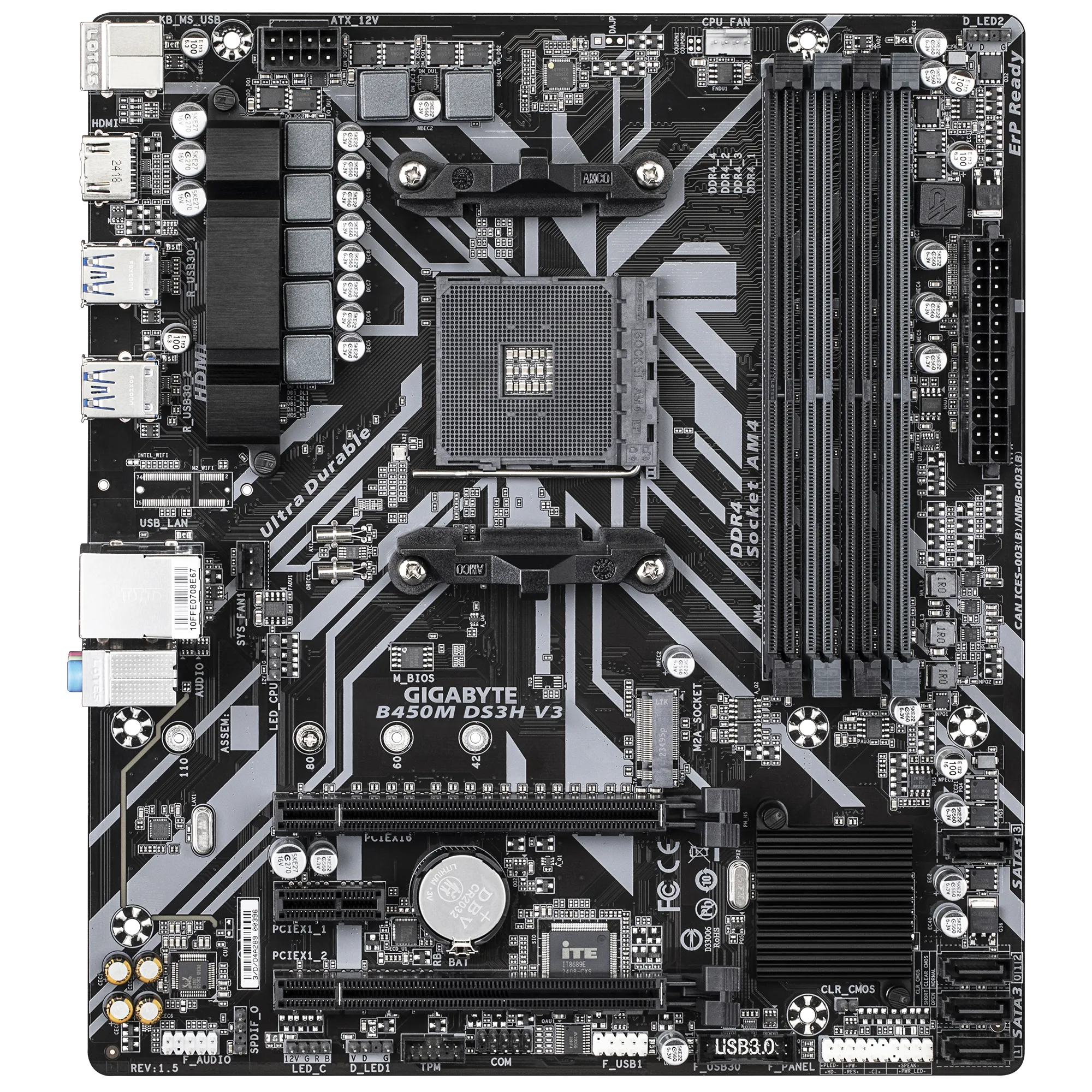

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x CPU cooler LED strip/RGB LED strip header
6. 1 x RGB LED strip header
7. 2 x addressable LED strip headers
8. 1 x M.2 Socket 3 connector
9. 4 x SATA 6Gb/s connectors
10. 1 x front panel header
11. 1 x front panel audio header
12. 1 x S/PDIF Out header
13. 1 x USB 3.1 Gen 1 header
14. 1 x USB 2.0/1.1 header
15. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
16. 1 x serial port header
17. 1 x Clear CMOS jumper

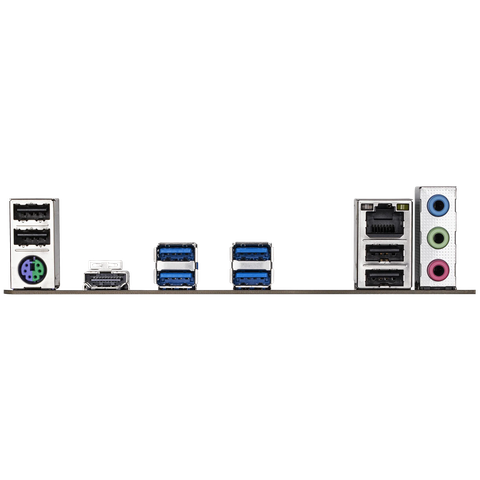

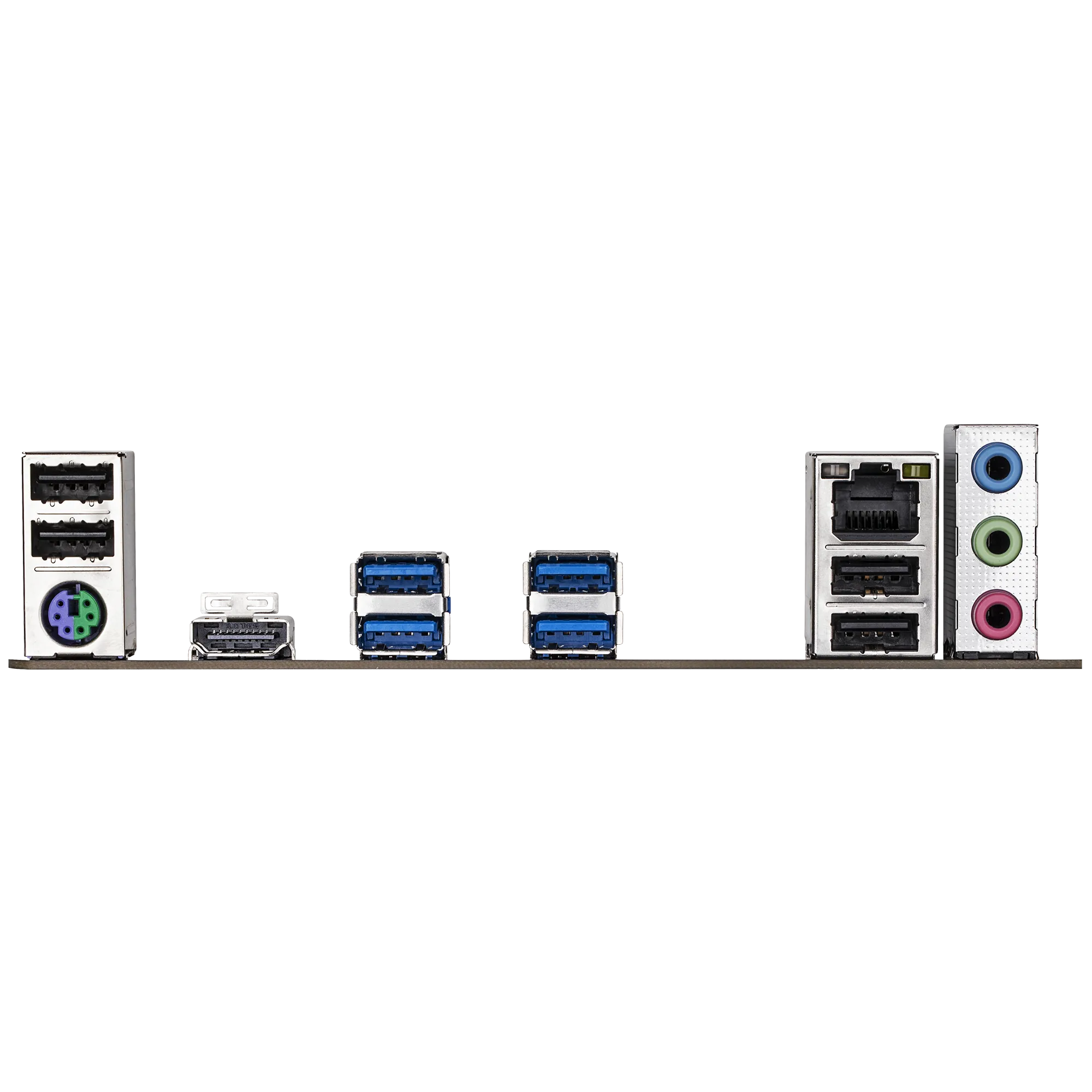

1. 1 x PS/2 keyboard/mouse port
2. 1 x HDMI port
3. 4 x USB 3.1 Gen 1 ports
4. 4 x USB 2.0/1.1 ports
5. 1 x RJ-45 port
6. 3 x audio jacks
